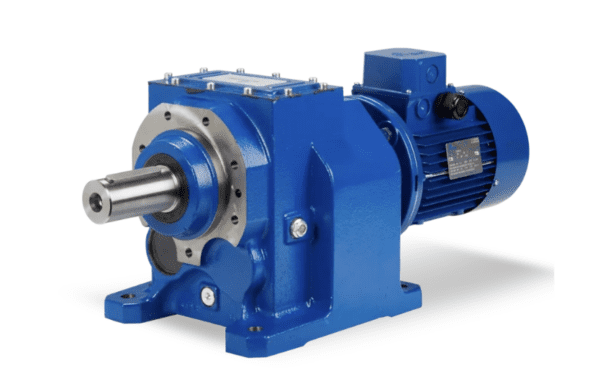

R87 Helical Inline Gearbox

Description

Output Solid Shaft 50mm
Torque max (Nm) 1550
Min ratio 5.3
Max ratio 2 stage 34.4
Max ratio 2 stage 246.54
Radial Load (N) 16900
Input bore diametre (D) 24 28 38 42 48
Flange diametre (P) 200 250 300 350
Flange PCD (M) 165 215 265 300
Flange Locating Diametre (N) 130 180 230 250
Flange Length (L)  84.5 96 125
